Spray Forming PM23 High-Speed Steel (1.3344 / SKH53)

Spray Forming PM23 High-Speed Steel (1.3344 / SKH53)

Spray Forming PM23 (ASP2023) High-Speed Steel is a high-performance tool steel designed for applications requiring superior wear resistance, toughness, and thermal stability. Produced using advanced spray forming technology, this steel features a fine-grain microstructure and uniformly distributed granular carbides, offering remarkable cutting performance and tool longevity.

Compared to conventional PM23, Spray Forming PM23 enhances key properties, including hardness stability, wear resistance, and toughness, with a notable improvement in thermal stability due to the addition of cobalt. These attributes make Spray Forming PM23 an ideal solution for heavy-duty cutting, high-temperature applications, and extreme operational conditions.

Why Choose Spray Forming High-Speed Steel?

1. A Material Between Conventional HSS and Powder Metallurgy HSS

Strictly speaking, Spray Forming Steel belongs to the powder metallurgy family, but it represents a distinct manufacturing process. It combines the advantages of traditional high-speed steel (HSS) and powder metallurgy HSS, providing an optimal balance of performance and cost-efficiency.

2. Cost-Effective Alternative to Powder Metallurgy Steel

Powder metallurgy high-speed steel can be cost-prohibitive for some applications. Spray forming HSS offers similar tool life and durability while being more affordable, allowing you to reduce material costs and improve overall production efficiency.

3. Upgrade from Conventional Imported Tool Steels

If you’re using traditional high-speed steel imported from Europe or Japan, consider switching to Spray Forming HSS. It delivers better performance, competitive quality, and improved value while helping you cut costs without compromising tool reliability.

Product Advantages Of Spray Forming Steel

  • Fine grain structure and uniform carbide distribution improve wear resistance and edge stability.

  • Inhibits macrosegregation of alloying elements, ensuring uniform material properties.

  • Superior strength and toughness post-heat treatment, far surpassing the performance of high-quality electroslag steels.

  • Close tool life to powder metallurgy steels, while offering better cost efficiency.

  • Provides a perfect alternative to imported electroslag remelting materials with better quality at the same price.

Priniple of Spray Forming

  • First, the raw materials are heated into molten metal, and then gas atomized.

  • Under the action of the gas jet, the droplets are accelerated to fly and rapidly cooled.

  • When the high-speed flying droplets collide in the precipitator, the spherical particles are impacted. It becomes flat to form a sputtering sheet.

  • The particles solidify rapidly through the cooling effect of the precipitator, and accumulate and form under the action of self- fluxing.

Spray Forming HSS Application
Key Applications

  • Gear Shaving Cutter

  • Broach (Diameter ≥60 mm)

  • Gear Hobbing Cutter

  • Gear Shaper Cutter

  • Thread Rolling Wheel

  • Thread Rolling Plate
Spray Forming HSS PM23 Equivalent Standards & Specifications
ZEICIN GradeGB / GOSTAISIJISDINErasteelBohlerHitachi
F923CW6Mo5Cr4V3 / R6M5F3PM23SKH531.33442023S790HAP10
Spray Forming HSS PM23 Chemical Composition
ElemnetCWMoCrVCoAlMnSiSP
Contene(%)1.286.205.004.103.00––0.250.30≤0.015≤0.030
Spray Forming HSS PM23 Heat Treatment Process

Annealing

Softens the steel to about HB 255, relieving internal stress and improving machinability before hardening.

Quenching

Heat to 1150–1180°C, followed by rapid cooling to obtain high hardness and excellent wear resistance.

Tempering

Temper at 550–570°C after quenching to balance hardness and toughness. The final hardness reaches 63-66 HRC.

ZEICIN Steel Quality Advantage

Quality comparison with domestic and international competitors

Spray Forming HSS PM23 Product Forms

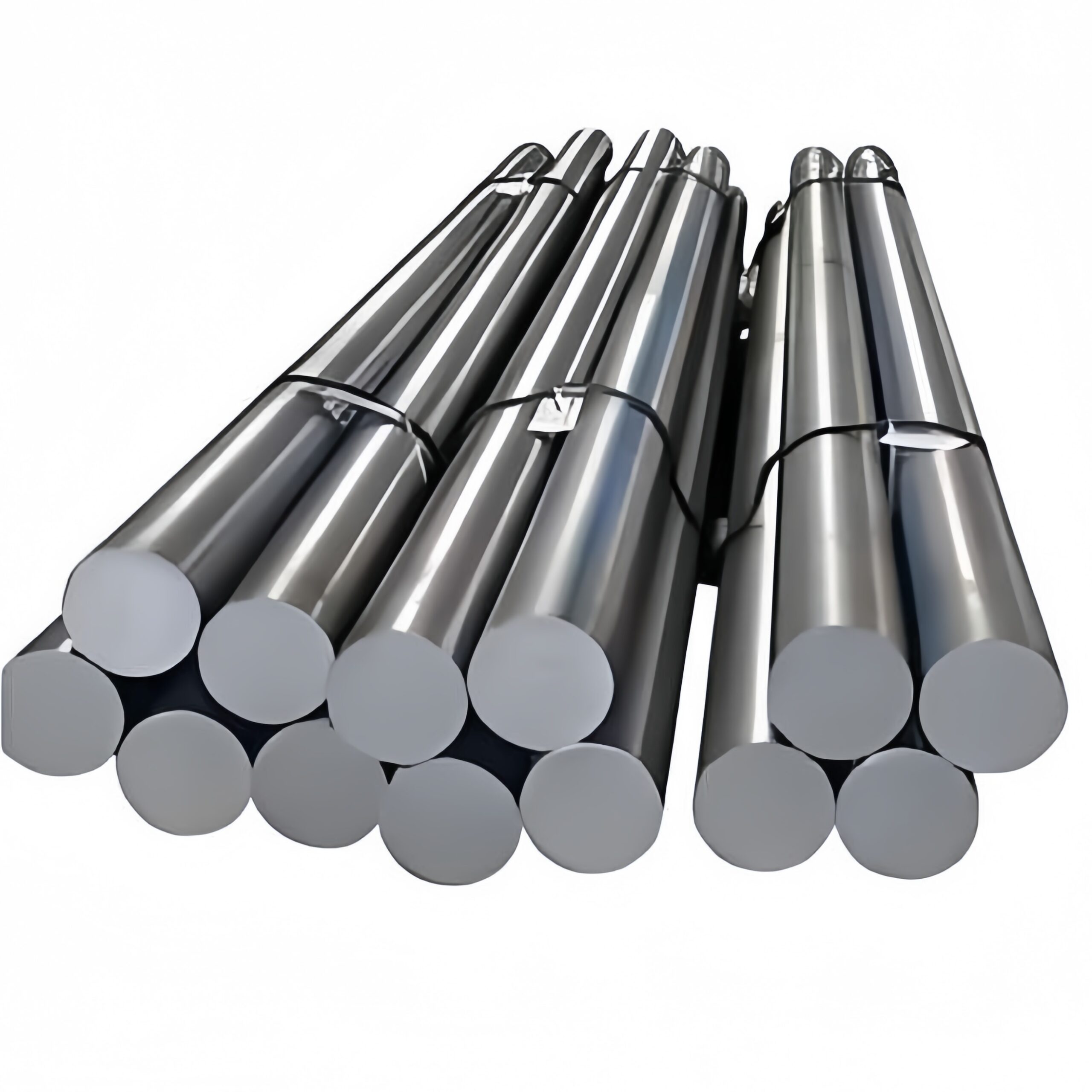

ZEICIN Steel supplies Spray Forming PM23 High-Speed Steel as forged bars produced from spray-formed billets, ensuring stable quality and uniform structure.


TypeSpecification（mm)Surface Condition
Precision Forged Round Steel (Spray Forming)φ60–300+Turned/Peeled Surface
Custom Spray Forming Steelφ100–300 (up to 3–4 meters in length)Turned/Peeled Surface
Large Diameter Custom Forgingφ200–300 (up to 1.5 meters in length)Turned/Peeled Surface
Surface Condition Gallery

Different surface conditions affect appearance, dimensional accuracy, and machining allowance. The images below show common delivery options (actual products may vary by size and batch).

Black Surface
Ground Surface
Peeled Surface
Honorary certificate
Invention Patent Certificate
Environmental Management System Certification
Invention Patent Certificate
Utility Model Patent Certificate
Packaging & Shipping
Customer Feedback
Real customer feedback to show our performance in quality, and service .
HSS HOBS TEST FEEDBACK
HSS CLIENTS TEST FEEDBACK
Frequently Asked Questions

Yes. We are a factory. ZEICIN STEEL produces high-quality, cost-effective special steels, including stainless steel, tool & die steel, and high-speed steel. We also have our own import/export license, so we can serve overseas customers directly and support stable supply with batch traceability.

Yes. For first-time cooperation, we can provide a limited quantity of samples for verification (such as grade confirmation, machining trials, or heat-treatment evaluation). Samples can be shipped by international courier, and the courier cost is paid by the buyer. We value honest cooperation and look forward to a long-term win-win partnership.

Our common international payment methods include T/T and L/C. For trade terms, we can also support options such as DDU based on the order. The final payment method and terms can be confirmed according to your country/region, order value, and delivery method.



Our products use standard industrial packaging to ensure safe transportation. If you need custom packaging, please let us know when placing your order.

If the products are in stock, delivery usually takes 5–7 days.
If the products are not in stock, delivery time is about 30–40 days, depending on the order quantity.
