Spray Forming 1.3377 High-Speed Steel (ASP2005) is a high-performance cutting tool steel designed for punching molds with high toughness, wear resistance, and strength. It provides a strong balance of wear resistance, toughness, and thermal stability, making it suitable for demanding industrial applications.

Produced using advanced spray forming technology, the steel features a fine-grain microstructure with uniformly distributed carbides. This reduces carbide segregation and improves cutting stability, edge retention, and tool life compared with conventional high-speed steels.

Compared with general-purpose grades such as M2 high-speed steel, 1.3377 offers improved hot hardness and heat resistance, allowing it to maintain cutting performance and edge strength under high temperature and mechanical stress.

Why Choose Spray Forming High-Speed Steel?

1. A Material Between Conventional HSS and Powder Metallurgy HSS

Strictly speaking, Spray Forming Steel belongs to the powder metallurgy family, but it represents a distinct manufacturing process. It combines the advantages of traditional high-speed steel (HSS) and powder metallurgy HSS, providing an optimal balance of performance and cost-efficiency.

2. Cost-Effective Alternative to Powder Metallurgy Steel

Powder metallurgy high-speed steel can be cost-prohibitive for some applications. Spray forming HSS offers similar tool life and durability while being more affordable, allowing you to reduce material costs and improve overall production efficiency.

3. Upgrade from Conventional Imported Tool Steels

If you’re using traditional high-speed steel imported from Europe or Japan, consider switching to Spray Forming HSS. It delivers better performance, competitive quality, and improved value while helping you cut costs without compromising tool reliability.

Product Advantages Of Spray Forming Steel

Fine grain structure and uniform carbide distribution improve wear resistance and edge stability.
Inhibits macrosegregation of alloying elements, ensuring uniform material properties.
Superior strength and toughness post-heat treatment, far surpassing the performance of high-quality electroslag steels.
Close tool life to powder metallurgy steels, while offering better cost efficiency.
Provides a perfect alternative to imported electroslag remelting materials with better quality at the same price.

Priniple of Spray Forming

First, the raw materials are heated into molten metal, and then gas atomized.
Under the action of the gas jet, the droplets are accelerated to fly and rapidly cooled.
When the high-speed flying droplets collide in the precipitator, the spherical particles are impacted. It becomes flat to form a sputtering sheet.
The particles solidify rapidly through the cooling effect of the precipitator, and accumulate and form under the action of self- fluxing.

Key Applications

Gear Shaving Cutter
Broach (Diameter ≥60 mm)
Gear Hobbing Cutter
Gear Shaper Cutter
Thread Rolling Wheel
Thread Rolling Plate

Spray Forming 1.3377 Equivalent Standards & Specifications

ZEICIN Grade	GB / GOST	AISI	JIS	DIN	ASSAB	Bohler	Erasteel
F937	–	–	–	1.3377	V4E	K490	2005

Spray Forming 1.3377 Chemical Composition

Elemnet	C	W	Mo	Cr	V	Co	Al	Mn	Si	S	P
Contene(%)	1.50	2.50	2.50	4.00	4.00	–	–	0.25	0.45	≤0.025	≤0.025

Spray Forming 1.3377 Heat Treatment Process

Annealing

Softens the steel to approximately HB 269, improving machinability and relieving internal stress.

Quenching

Heat to 1150–1180°C, followed by rapid cooling to achieve high hardness and wear resistance.

Tempering

Temper at 550–570°C to balance hardness and toughness. Final hardness: 63–66 HRC

Quality comparison with domestic and international competitors

Spray Forming 1.3377 High-Speed Steel Product Forms

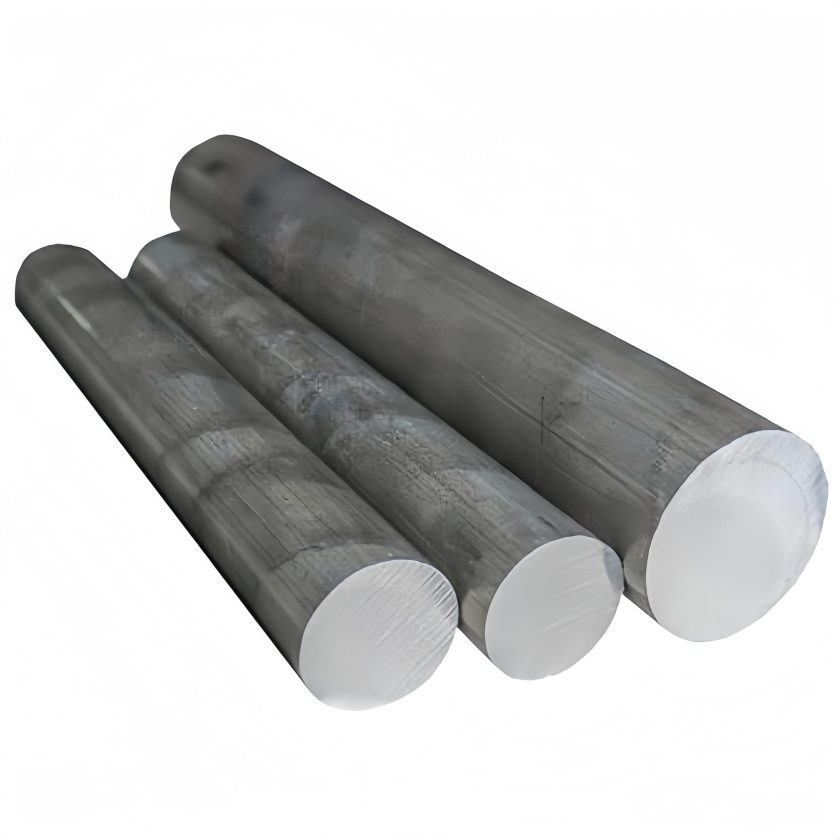

ZEICIN supplies Spray Forming 1.3377 High-Speed Steel as forged bars from spray-formed billets.

Type	Specification（mm)	Surface Condition
Precision Forged Round Steel (Spray Forming)	φ60–300+	Turned/Peeled Surface
Custom Spray Forming Steel	φ100–300 (up to 3–4 meters in length)	Turned/Peeled Surface
Large Diameter Custom Forging	φ200–300 (up to 1.5 meters in length)	Turned/Peeled Surface

Surface Condition Gallery

Different surface conditions affect appearance, dimensional accuracy, and machining allowance. The images below show common delivery options (actual products may vary by size and batch).

Honorary certificate

Invention Patent Certificate

Environmental Management System Certification

Invention Patent Certificate

Utility Model Patent Certificate

Packaging & Shipping

Customer Feedback

Real customer feedback to show our performance in quality, and service .

Frequently Asked Questions

Are you a factory?

Yes. We are a factory. ZEICIN STEEL produces high-quality, cost-effective special steels, including stainless steel, tool & die steel, and high-speed steel. We also have our own import/export license, so we can serve overseas customers directly and support stable supply with batch traceability.

Can you provide samples?

Yes. For first-time cooperation, we can provide a limited quantity of samples for verification (such as grade confirmation, machining trials, or heat-treatment evaluation). Samples can be shipped by international courier, and the courier cost is paid by the buyer. We value honest cooperation and look forward to a long-term win-win partnership.

What international payment methods do you accept?

Our common international payment methods include T/T and L/C. For trade terms, we can also support options such as DDU based on the order. The final payment method and terms can be confirmed according to your country/region, order value, and delivery method.

How are the products packaged?

Our products use standard industrial packaging to ensure safe transportation. If you need custom packaging, please let us know when placing your order.

What is your delivery time?

If the products are in stock, delivery usually takes 5–7 days.
If the products are not in stock, delivery time is about 30–40 days, depending on the order quantity.
