General Details

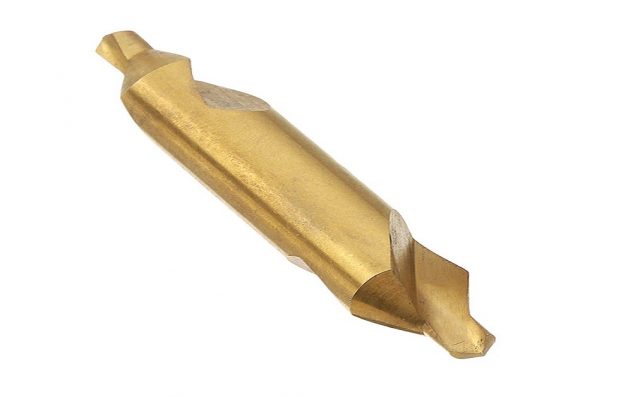

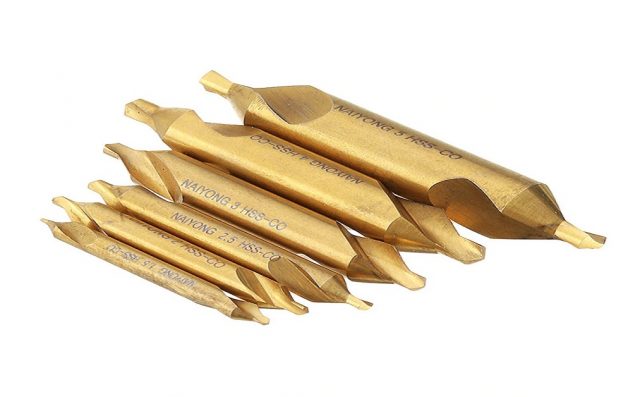

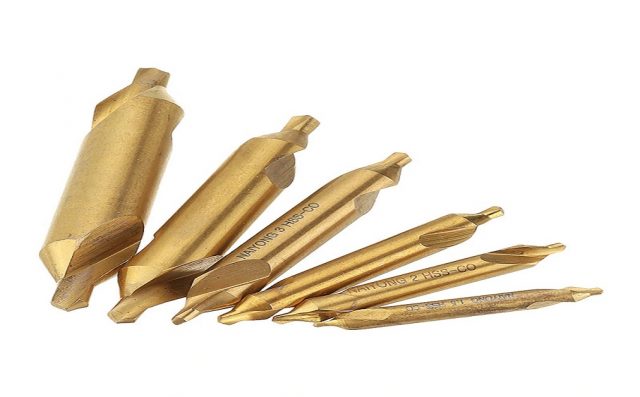

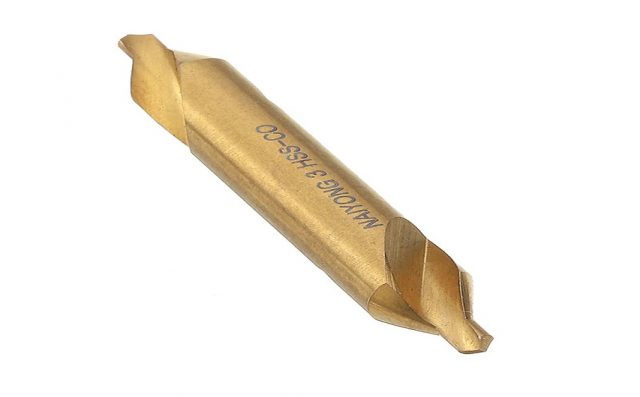

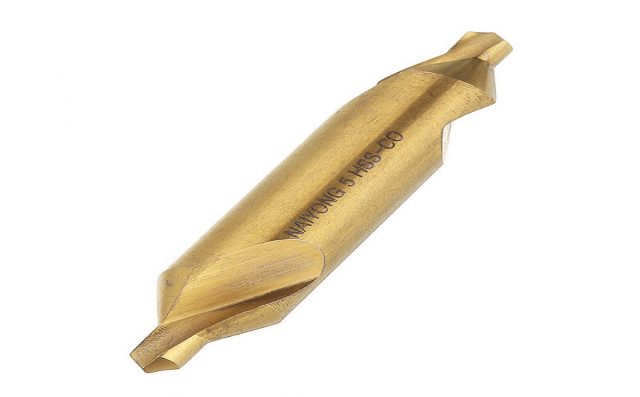

HSS M35 Cobalt Center Drill Bit

Each drill has a double end and is ground with a standard 60-degree angle.
Center and spotting drills are traditionally used to make a conical hole for a lathe center in order to make a starting point for a standard twist drill,
designed to prevent the twist drill from walking.
Used for producing center holds in components or workpieces with require machining between centers.

1.Material: High-Speed Steel+M35 Cobalt

2.Size:  1.5/2/2.5/3/4/5mm

3.HSS M35 Cobalt Center Drill Bit



Type Body diameter(mm) Drill tip diameter(mm)
1 4 1.5
2 5 2
3 6 2.5
4 8 3
5 10 4
6 12 5
