General Details

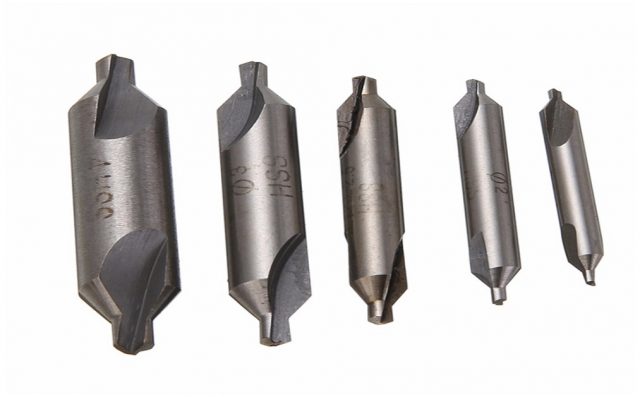

High-Speed Steel Center Drill Bits

Used to make a conical hole for a lathe center in order to make a starting point for a standard twist drill
Precision import Double-ended Each drill has a double end and is ground with a standard 60-degree angle
Used for producing center holds in components or workpieces with require machining between centers.



1.Material: HSS

2.Size: 1mm 2mm 3mm 5mm

3.HSS High-Speed Steel Center Drill Bits



size body diameter(mm) drill tip diameter(mm)
# 1 3 1
# 2 5 2
# 3 8 3
# 4 12 5



High Speed Steel Center Drill Bits Set Precision Combined Countersinks

High Speed Steel Center Drill Bits Set Precision Combined Countersinks

High Speed Steel Center Drill Bits Set Precision Combined Countersinks

High Speed Steel Center Drill Bits Set Precision Combined Countersinks
