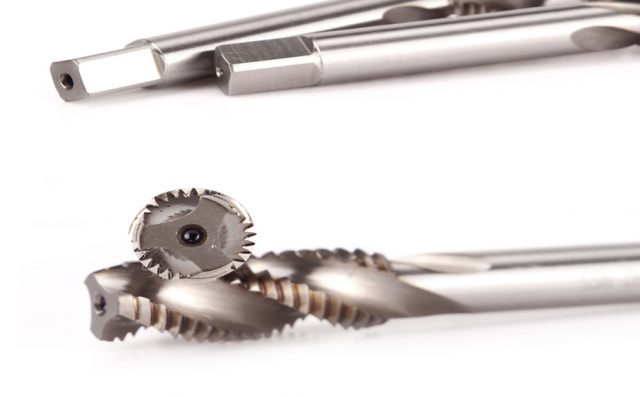

High-performance spiral flute tap
We can produce the high quality raw material for high speed steel, meanwhile, we can provide you semi-product and product for HSS cutting tools such as
HSS taps etc.
The tooth-leading part, ditch’s shape, and length of screw thread tooth are all new with special design and professional considerations.
Improve your processing efficiency, and reduce the consumption of the tool.
Applicable to the blind hole’s processing of carbon steel and alloy steel. Its spiral flute design efficiently removes chips during the tapping process, ensuring smooth, uninterrupted operations in blind holes and through holes.
1.Material:HSS CO-5%, HSS M2 M35
2.Size: M2-M16
3.HSS High performance spiral flute tap
High performance spiral flute tap
| Metric thread M |
total length L(mm) |
thread length L1(mm) |
diameter d(mm) |
number of flute (Flutes) |
| M2*0.4 |
48 |
8 |
2.5 |
3 |
| M2.3*0.4 |
48 |
9.5 |
2.8 |
3 |
| M2.5*0.45 |
48 |
9.5 |
2.8 |
3 |
| M2.6*0.45 |
48 |
9.5 |
2.8 |
3 |
| M3*0.5 |
48 |
11 |
3.15 |
3 |
| M3.5*0.6 |
53 |
13 |
3.55 |
3 |
| M4*0.75 |
53 |
13 |
4 |
3 |
| M4*0.7 |
53 |
13 |
4 |
3 |
| M4*0.5 |
53 |
13 |
4 |
3 |
| M4.5*0.75 |
58 |
16 |
4.5 |
3 |
| M5*0.9 |
58 |
16 |
5 |
3 |
| M5*0.8 |
58 |
16 |
5 |
3 |
| M5*0.5 |
58 |
16 |
5 |
3 |
| M6*1 |
66 |
19 |
6.3 |
3 |
| M6*0.75 |
66 |
19 |
6.3 |
3 |
| M6*0.5 |
66 |
19 |
6.3 |
3 |
| M7*1 |
72 |
22 |
6.3 |
3 |
| M7*0.75 |
72 |
22 |
6.3 |
3 |
| M8*1.25 |
72 |
22 |
6.3 |
3 |
| M8*1 |
72 |
22 |
6.3 |
3 |
| M8*0.75 |
72 |
22 |
6.3 |
3 |
| M8*0.5 |
72 |
22 |
6.3 |
3 |
| M9*1.25 |
80 |
24 |
7.1 |
3 |
| M9*1 |
80 |
24 |
7.1 |
3 |
| M10*1.5 |
80 |
24 |
8 |
3 |
| M10*1.25 |
80 |
24 |
8 |
3 |
| M10*1 |
80 |
24 |
8 |
3 |
| M10*0.75 |
80 |
24 |
8 |
3 |
| M10*0.5 |
80 |
24 |
8 |
3 |
| M12*1.75 |
89 |
29 |
9 |
3 |
| M12*1.5 |
89 |
29 |
9 |
3 |
| M12*1.25 |
89 |
29 |
9 |
3 |
| M12*1 |
89 |
29 |
9 |
3 |
| M14*2 |
95 |
30 |
11.2 |
3 |
| M14*1.5 |
95 |
30 |
11.2 |
3 |
| M14*1.25 |
95 |
30 |
11.2 |
3 |
| M14*1 |
95 |
30 |
11.2 |
3 |
| M15*1.5 |
102 |
32 |
12.5 |
3 |
| M16*2 |
102 |
32 |
12.5 |
3 |
| M16*1.5 |
102 |
32 |
12.5 |
3 |
| M16*1 |
102 |
32 |
12.5 |
3 |
4.Why Choose Our HSS High Performance Spiral Flute Tap?
The image shows our high-performance spiral flute tap in its semi-finished form. This tap has undergone initial structural shaping and is made from premium High-Speed Steel (HSS), ensuring excellent wear resistance and strength. The spiral flute design enhances cutting efficiency and chip removal, making it suitable for threading hard-to-machine materials such as stainless steel and cast iron.
- Superior Material – High-Speed Steel (HSS)
Our spiral flute taps are crafted from high-speed steel, known for its exceptional durability and resistance to wear. HSS taps maintain their sharpness and cutting edge longer than other materials, ensuring consistent performance over extended use.
The spiral flute design of our taps ensures efficient chip removal, reducing the risk of clogging and improving overall threading quality. This design is especially beneficial when working with materials that produce long, stringy chips, such as aluminum and stainless steel.
Whether you’re tapping through holes or blind holes, our HSS spiral flute taps are versatile enough to handle a wide range of materials, including carbon steel, alloy steel, cast iron, and non-ferrous metals. This versatility makes them an essential tool for any workshop.
Delivers superior precision and consistently accurate threading, even when working with hard-to-machine materials such as stainless steel and high-tensile alloys. The tap’s advanced design ensures smooth cutting and minimizes the risk of tool breakage, allowing for reliable performance in demanding industrial applications.
5.Key Features
- Precision Ground Flutes: Ensure smooth cutting and accurate threading.
- Advanced Coating Options: Available with various coatings improve tool life，reduce friction, and enhance performance in high-temperature environments.
- Optimized Helix Angle: Optimized for chip removal, preventing clogging and reducing the risk of tool breakage.
- Standard and Custom Sizes: Offered in a variety of sizes to meet your specific threading needs.
6.Applications
Our HSS High Performance Spiral Flute Taps are perfect for:
- Automotive Industry: Ideal for creating precise threads in engine parts, transmission components, and other critical automotive systems.
- Aerospace Industries: Suitable for high-stress applications requiring precise and reliable threading and ensuring reliable performance under extreme conditions.
- Industrial Machinery: Perfect for use in heavy-duty machinery where accurate and durable threading is essential for long-term operation.
- Precision Engineering: Ensures high-accuracy threads in finely-tuned instruments and devices, where even slight deviations can affect performance.
7.Benefits
- Increased Productivity: Faster threading and reduced downtime thanks to superior chip evacuation and durable construction.
- High Precision: The spiral flute design ensures accurate and clean thread cutting, reducing the chances of errors or misalignment, even in difficult-to-machine materials.
- Enhanced Durability: Made from high-speed steel (HSS), the tap provides excellent wear resistance, extending its life and reducing the need for frequent replacements.
- Efficient Chip Removal: The spiral flutes efficiently evacuate chips during the tapping process, preventing clogging and minimizing the risk of tool breakage or damage.
- Cost-Effective: Longer tool life means fewer replacements and lower operational costs.
